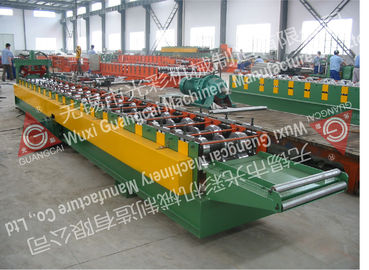

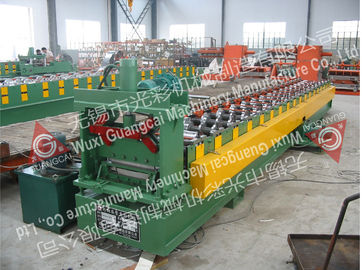

GWC38-300 Wall Panel Thickness 0.4-0.8mm Roll Forming Machine

GWC38-300 Wall Panel Thickness 0.4-0.8mm Roll Forming Machine
GWC38-300 Wall Panel Thickness 0.4-0.8mm Roll Forming Machine GWC38-300 Wall Panel Thickness 0.4-0.8mm Roll Forming Machine GWC38-300 Wall Panel Thickness 0.4-0.8mm Roll Forming Machine GWC38-300 Wall Panel Thickness 0.4-0.8mm Roll Forming Machine GWC38-300 Wall Panel Thickness 0.4-0.8mm Roll Forming Machine

Large Image :  GWC38-300 Wall Panel Thickness 0.4-0.8mm Roll Forming Machine

Product Details:
Place of Origin: China
Brand Name: GMC
Certification: CE and Patent Certificate
Model Number: GWC38-300
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Customized packaging
Delivery Time: 70 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5-500 set a year
Detailed Product Description
Name: Roll Forming Equipment Thickness: 0.4-0.8mm
Application: Wall Panel Roller Material: 45# Steel Coated With Hard Chrome
Main Motor Power / Hydraulic Station Power: 5.5kW / 3kW Forming Speed: 5-15 Meters/minute
High Light:

corrugated sheet roll forming machine

,

metal roof roll forming machine

GWC38-300 Wall Panel Thickness 0.4-0.8mm Roll Forming Machine



Wall Panel Roll Forming Machine

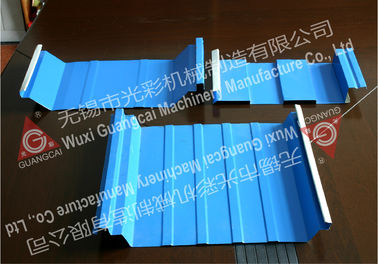

The wall panel roll forming machine is designed to make favored wall panels that are used to build walls of many industrial and civilian constructions around the world, including workshop, warehouse, hangar, gymnasium, theatre, exhibition hall, engine house, etc.

Features
1. The finished panel has small depth and large pitch. Thus, it is relatively easier to manufacture this machine, and the price is moderate.

2. The wall panel itself has reinforcing rib, and corrugation is not generated during production. Its mechanical strength makes it suitable for general use.

3. There is no need to redesign the wall panel roll forming machine, so the production cycle is reduced greatly. In addition, customized products are also available if relevant drawings and requirements are provided.

Processing Flow
Passive decoiling → guided material feeding → roll forming → cut-to-length → offloading

Composition

1. 5T passive decoiler

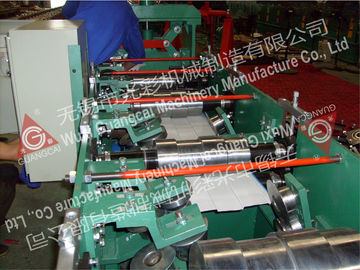

2. Shape forming machine
3. Hydraulic shear

4. Hydraulic station
5. PLC control cabinet
6. Run out table













Specifications



Model GWC38-300 GWC41-210-420 GWC50-373 Note
Applicable material Color plate, galvanized sheet, galvalume sheet, aluminum plate This machine is customizable upon each customer's requirements and the characteristics of processed material.
Feeding width 457mm 600mm 600mm
Processing thickness 0.4-0.8mm
Roller material 45# steel coated with hard chrome
Main motor power / hydraulic station power 5.5kW / 3kW These parameters can be set according to the required production capacity.
Forming passes 18 passes 18 passes 24 passes
Forming speed 5-15 meters/minute
Machine dimensions 9×1.3×1.2m 10×1.3×1.2m 11×1.3×1.2m
Machine weight 5.5T 6T 7T



Related Names
Building Wall Panel Equipment | Metal Siding Panel Making Machine | Steel Facade Panel Machine
