Product Details:
Payment & Shipping Terms:
|
| Use: | Wall,workshop,Roof And Wall | Certification: | CE/ISO9001 |
|---|---|---|---|
| Voltage: | 380V 50Hz 3phases,380V,3 Phase | Condition: | New |
| Weight: | 10T,11T,5 Tons,20 T | Tile Type: | Colored Steel,Glazed,Aluminum |
| High Light: | corrugated sheet roll forming machine,metal deck roll forming machine |
||

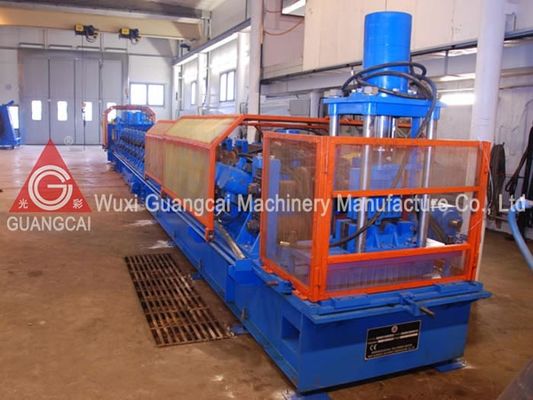

GWC83-310 Guardrail Thickness 1.0-4.0mm Roll Forming Machine
We are currently headquartered within the Qianqiao Industrial Park of Wuxi city, near Taihu Lake. Our property spans over 32,000 square meters, of which 12,000 is occupied by facilities. We have an experienced staff or more than 300 employees. Our development team of 30 consists of senior and intermediate engineers, all of whom are experts in the fields of design and manufacturing. These professionals can provide total solutions for non-standard cold roll forming machines based on individual customer preferences. Efficient communications with client-side representatives allow us to meet their exact demands. Our implementation of advanced information technology enables high working proficiency. In this capacity, we can effectively eliminate overly complex processes for procedures such as machine operation, maintenance, and technical management.
We have developed a series of high performance silo cold roll forming machinery. This achievement distinguishes us as the only domestic manufacturer capable of producing such machines. We have successfully passed the ISO9001:2000 Quality Management System certification. In 2013, we were designated as a "Corporate Design Center" by the Wuxi Bureau of Science & Technology.
The reputation of GUANGCAI Machinery is built upon the solid foundation of outstanding quality. We have successively gained membership into highly respected organizations such as the Chinese Cold Roll Machinery Association and the Chinese Steel Structure Association. Ongoing support from a worldwide client-base has greatly contributed towards our development and expansion efforts. Your confidence in our products is the driving force behind our dedication!
Processing Flow
Steel coil loading → hydraulic decoiling→ clamp-feeding and straightening → punching → roll forming → hydraulic cutting → offloading
Composition
1. 3T passive decoiler
2. Shape forming machine
3. Hydraulic shear
4. Punching machine
5. Hydraulic station
6. PLC control cabinet
7. Run out table
Specifications
| Model | GWC83-310 |
Note |
| Applicable material | Galvanized plate and carbon steel | This machine is customizable upon each customer's requirements and the characteristics of processed material. |
| Feeding width | 482mm | |
| Processing thickness | 1.0-4.0mm | |
| Roller material | Heat treated bearing steel | |
| Main motor power / hydraulic station power | 75kW (DC motor) / 22kW | These parameters can be set according to the required production capacity. |
| Rolling passes | 17 | |
| Rolling speed | 5-15 meters/minute | |
| Machine dimensions | 20×1.5×1.2m | |
| Machine weight | 10T,11T,5 Tons,20 t |
Related Names
Road Safety Guardrail Forming Machine | Highway Crash Barrier Equipment | Metal Beam Guard Rail Machine
