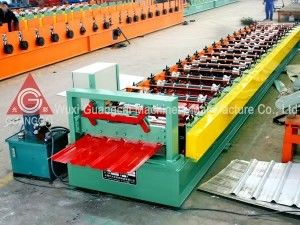

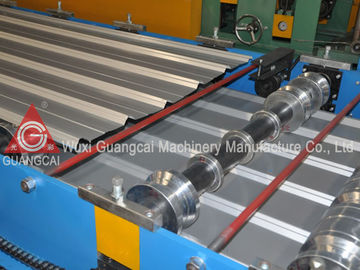

Portable Metal Roof Roll Forming Machine High Utilization Rate Low Depth

Portable Metal Roof Roll Forming Machine High Utilization Rate Low Depth
Portable Metal Roof Roll Forming Machine High Utilization Rate Low Depth Portable Metal Roof Roll Forming Machine High Utilization Rate Low Depth

Large Image :  Portable Metal Roof Roll Forming Machine High Utilization Rate Low Depth

Product Details:
Place of Origin: China
Brand Name: GMC
Certification: CE and Patent Certificate
Model Number: GWC25-205-820
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Customized packaging
Delivery Time: 70 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5-500 set a year
Detailed Product Description
Voltage: 380V 50Hz 3phases Key Selling Points: Long Service Life
Raw Material: Color Steel Sheet,Galvanized Coil,Aluminum Control System: PLC(Imported Brand)
Roller Material: High Grade 45# Steel,Quenched,Heat-Treatment And Hard Chrome 0.05mm Roller Stations: 18/18 Stations,Different Profile With Different Stations
High Light:

corrugated sheet roll forming machine

,

metal roof roll forming machine

GWC25-205-820 Roof Panel Roll Forming Machine





- Steel gutter machine is for processing 0.5mm thickness color steel. Actually the thickness can be up to 0.8mm. It is half round profile to be used together with downpipe.

- For the steel gutter machine, there are 16 roller stations for roll forming machine, adopts hydraulic cutting type, can cut to any length automatically. Together with the machine, the whole production line also include one decoiler and one output table.



Roof panels made by this GWC25-205-820 roof panel roll forming machine are extremely popular on the market because of the high utilization rate, low depth (the height from the top of a crest to the bottom of a trough) and the cost-effective performance.

Aside from the common features shared by this series, our product has some unique properties as listed below.

Advantages
1. This is a dual-use machine because one pitch could be added, making it into GWC25-205-1025 type and the feeding width is adjusted to 1200mm.

2. This roof panel roll forming machine is a very mature product, and there is no need to redesign it, thereby greatly reducing the production cycle.

Processing Flow
Passive decoiling → guided material feeding → rolling → cut-to-length → offloading

Composition

1. 5T passive decoiler
2. Shape forming machine
3. Hydraulic shear

4. Hydraulic station
5. PLC control cabinet
6. Run out table



Specifications

Model GWC25-205-820/1025 Reference
Applicable material Color plate, galvanized sheet, galvalume plate and aluminum sheet This machine is customizable upon each customer's requirements and the characteristics of processed material.
Feeding width 1000/1200mm
Processing thickness 0.3-0.8mm
Roller material 45# steel coated with hard chrome
Main motor power / hydraulic station power 3kW / 3kW These parameters can be set according to the required production capacity.
Forming passes 18
Forming speed 5-15 meters/minute
Machine dimensions 9.5×1.3×1.2m
Machine weight 7T


Related Names
Metal Sheet Roofing Forming Equipment | Steel Roofing Sheet Roll Former | Residential Metal Roof Making Machine
