|Warranty:||18 Months||Certification:||ISO CE|
|Type:||Steel Frame & Purlin Machine||Work Pressure:||195 Mpa---350 Mpa|
|Production Capacity:||300-700meters/Min||Voltage:||380V/50HZ 3Phase(As Customer'S Request)|
metal deck roll forming machine,
metal roof roll forming machine

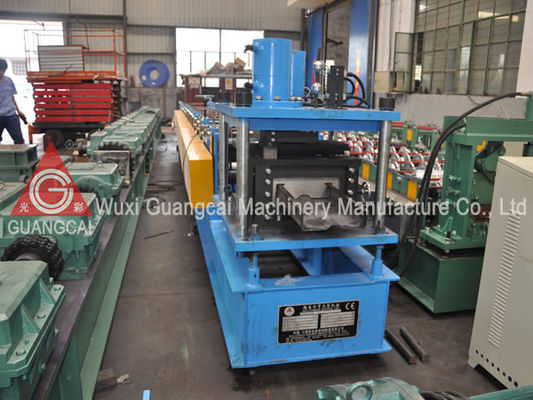

GWC280-340 W Purlin Roll Forming Machine
1) Our roofing sheet roll forming machine has hand knife at the end of the line.It can help you save Raw Material.
2) Our roofing sheet roll forming machine has two cylinders at least. Because the frictional force of shearing machines is very big. One cylinder machine has shorter using life.
3) Our roll forming machine has protective screening. Safer for the workers
1. By adjusting the spacer, the purlin roll forming machine is able to produce six kinds of products with different specifications.
2. It adopts stepless variable speed drive, including manual type and automatic type, to fabricate different purlin panels, ensuring high precision and stable performance.
3. According to the customer's requirements, there are three options for the production process which are pre-punching and pre-cutting type (punching – cutting- pressing), pre-punching and post-cutting type (punching – pressing - cutting), as well as post-punching and post cutting type (pressing – punching - cutting).
4. Our purlin roll forming machine can be designed according to the drawings and requirements provided by our client.
Passive decoiling → guided material feeding → roll forming → punching → cut-to-length → offloading
1. 3T passive decoiler
2. Shape forming machine
3. Hydraulic shear
4. Hydraulic station
5. Punching machine
6. PLC control cabinet
7. Run out table
The W-shaped steel sections made by the GWC280-340 W purlin roll forming machine is commonly adopted to make purlin and wall beam for steel buildings. The sections can also be assembled to form building components, such as lightweight roof truss and bracket. By adjusting the spacer, this machine is able to manufacture six kinds of W sections with different specifications.
|Applicable material||Galvanized sheet and carbon steel||This machine is customizable upon each customer's requirements and the characteristics of processed material.|
|Roller material||Heat treated bearing steel|
|Main motor power / hydraulic station power||37kW / 11kW||These parameters can be set according to the required production capacity.|
|Forming speed||5-15 meters/minute|
