|Voltage:||220/380||Key Selling Points:||Easy To Operate|
|Usage:||Building||Color:||Blue Grey Or As Reqired|
|Application:||Manufacturer||Feature:||High Production Speed And Safety Level|
metal roofing sheet making machine,
metal sheet forming machine

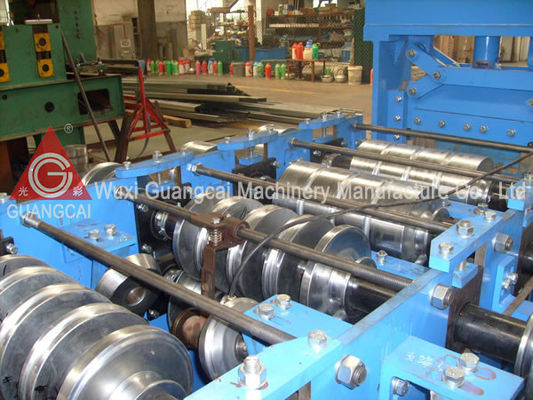

Bemo Panel Roll Forming Machine
1. The GWC400-600 Bemo panel roll forming machine is a dual-use machine which can produce both straight Bemo panel and tapered Bemo panel.
2. Our product can work together with a curving machine to form smooth arch with easy operation, and it only takes up a small area.
3. The finished Bemo panel is further processed by lock forming machine, and no bolt is needed, realizing excellent waterproof performance.
4. This equipment could be tailored to best fit the requirements of every client.
The Bemo panel roll forming machine is able to manufacture elegant and artistic Bemo panels that are commonly used to assemble the roofs for theatre, dock, airport, gymnasium, kindergarten, cultural center, research institution, exhibition hall, shopping mall, office building, tourist resort, etc.
Passive decoiling → guided material feeding → roll forming → cut-to-length → offloading
1. 5T passive decoiler
2. Shape forming machine
3. Hydraulic shear
4. Hydraulic station
5. PLC control cabinet
6. Run out table
|Applicable material||Color plate, galvanized sheet, galvalume sheet, aluminum plate||This machine is customizable upon each customer's requirements and the characteristics of processed material.|
|Roller material||45# steel coated with hard chrome|
|Main motor power / hydraulic station power||5.5kW / 4kW||These parameters can be set according to the required production capacity.|
|Forming speed||5-15 meters/minute|
Metal Roofing Sheet Equipment | Steel Roof Cladding Making Machine | Metal Cladding Sheet Equipment
Contact Person: Guangcai
Hydraulic Pressure: 10-12MPa
Production Capacity: 4 Kw
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
