|Type:||Tile Forming Machine||Production Capacity:||15-20m/Min|
|Tile Type:||Colored Glaze Steel||Use:||Roof|
corrugated sheet roll forming machine,
metal deck roll forming machine

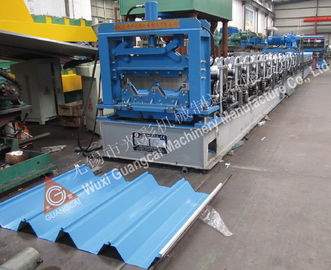

GWC75-380-760 Locked Roof Panel Roll Forming Machine
1. The GWC75-380-760 locked roof panel roll forming machine is a high quality product, and it could deliver satisfying performance. It is able to fabricate roof panels with the largest depth among the joint-hidden roof panels. So, the panel also has the highest mechanical strength, making it applicable even when strong wind or heavy snow exists.
2. On the other hand, there are two vertical reinforcing ribs on the bottom side of the panel, and corrugation is avoided during production. The installation method is 360 degree interlocking which gives the best waterproof performance. Owing to these, the finished panels are commonly seen in medium- and large-sized industrial buildings with large span, such as workshop, warehouse, hangar, stadium, theatre, engine house, exhibition hall, etc.

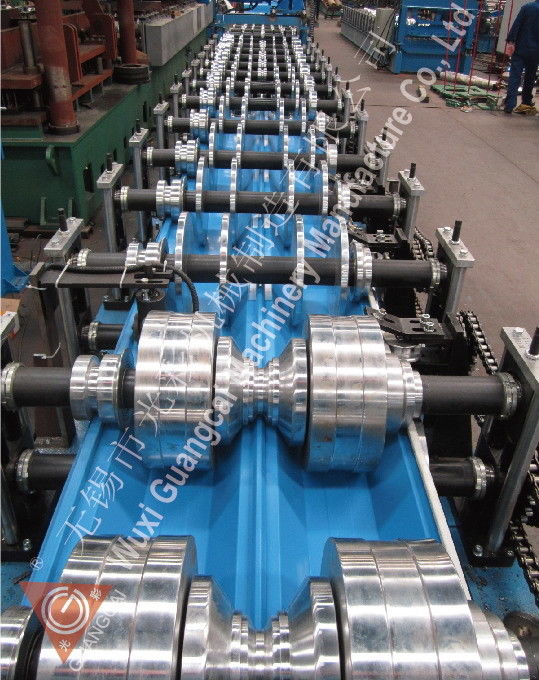

3. As mentioned above, the 360 degree interlocking method is used when mounting the roof panels. This means that the production equipment for the panel must be very precise, or the panels won't be arranged in a perfect manner which may lead to safety problems. Considering this, our locked roof panel roll forming machine is precisely manufactured and fully meets the requirement. In particular, the rollers are scientifically designed and then meticulously processed by CNC machines.
Passive decoiling → guided material feeding → roll forming → cut-to-length → offloading
1. 5T passive decoiler
2. Shape forming machine

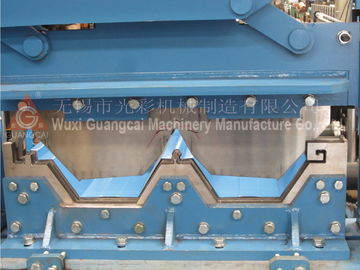

3. Hydraulic shear
4. Hydraulic station
5. PLC control cabinet
6. Run out table
|Applicable material||Color plate, galvanized sheet, galvalume sheet and aluminum plate.||This machine is customizable upon each customer's requirements and the characteristics of processed material.|
|Roller material||45# steel coated with hard chrome|
|Main motor power / hydraulic station power||7.5kW / 3kW||These parameters can be set according to the required production capacity.|
|Forming speed||5-15 meters/minute|
