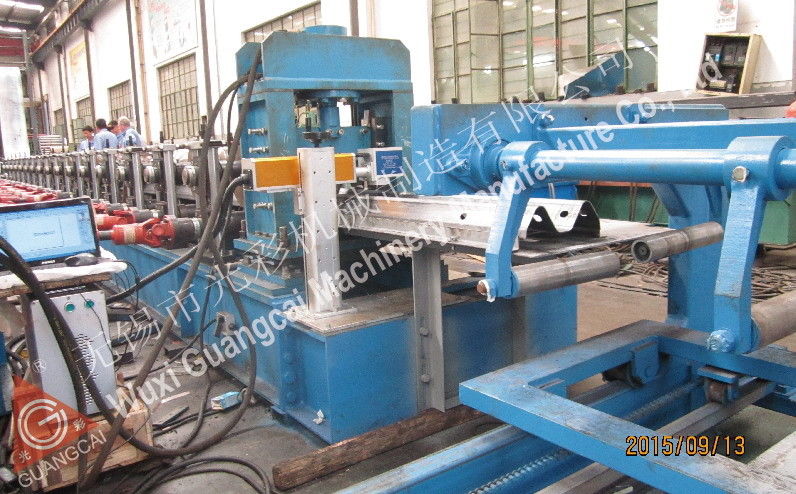

GWC83-310 Guardrail Thickness 1.0-4.0mm Roll Forming Machine
According to the differences of the corrugations and punched holes, the guardrail roll forming machine are designed with two working methods as demonstrated below.
1. The first one is making the guardrail by punching first and then forming the shape. This is adopted by most of manufacturers.
2. Our machine, unlike common products on the market, forms the shape first and then punches holes. This method ensures the high precision of punching positions, thus satisfying even the most captious customer. Meanwhile, the inclined punching system also contributes to the high punching precision, and this facilitates the connection of guardrails.
Aside from the above, this guardrail roll forming machine is able to manufacture double-wave and triple-wave guardrails, and pressing dies can be applied to produce C&U posts. In addition, our machine could be designed to work with hydraulic decoiler and stacker upon customer's request.
Steel coil loading → hydraulic decoiling→ clamp-feeding and straightening → punching → roll forming → hydraulic cutting → offloading
1. 3T passive decoiler
2. Shape forming machine
3. Hydraulic shear
4. Punching machine
5. Hydraulic station
6. PLC control cabinet
7. Run out table
|Applicable material||Galvanized plate and carbon steel||This machine is customizable upon each customer's requirements and the characteristics of processed material.|
|Roller material||Heat treated bearing steel|
|Main motor power / hydraulic station power||75kW (DC motor) / 22kW||These parameters can be set according to the required production capacity.|
|Rolling speed||5-15 meters/minute|
