Product Details:
Payment & Shipping Terms:
|
| Name: | K-span Roll Forming Machine | Thickness: | 0.3-1.5mm |
|---|---|---|---|
| Applicable Material: | Color Plate, Galvanized Sheet And Galvalume Sheet | Main Motor Power / Hydraulic Station Power: | 7.5KW/3KW |
| Forming Passes: | 16 | Forming Speed: | 5-15 Meters/minute |
| High Light: | metal roofing sheet making machine,metal sheet forming machine |
||
GWC400-600 Bemo Panel Thickness 0.4-0.8mm Roll Forming Machine
Features
a. With the help of a three-roll curving machine, a smooth arch is created, and the span reaches 38m. This method is usually used for constructions with large span such as hangar, workshop and livestock building, etc. In addition, a lock forming machine is used to connect the plates, and no bolt is needed.
b. The second method is to form the arch by a curving machine. This machine makes partial arch with small span for spire roof tops and ridges, such as garages, retail shops, repair plants, etc. The connection method is screw fixation in the pre-punched holes.
5. The k-span roll forming machine can be designed according to the requirements and drawings provided by our client.
Processing Flow
Passive decoiling → guided material feeding → roll forming → cut-to-length → offloading → curving
Composition
1. 5T passive decoiler

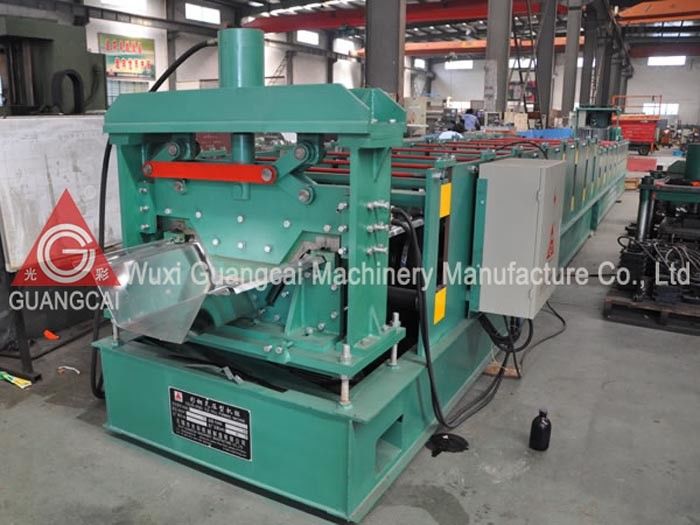

2. Shape forming machine
3. Hydraulic shear
4. Hydraulic station
5. PLC control cabinet
6. Run out table

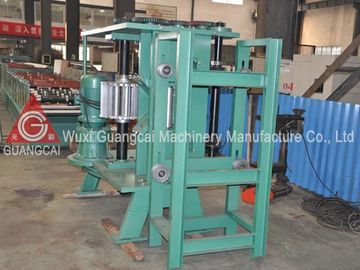

7. Curving machine
8. Lock forming machine
Specifications
| Model | Note | |
| Applicable material | Color plate, galvanized sheet and galvalume sheet | This machine is customizable upon each customer's requirements and the characteristics of processed material. |
| Feeding width | 914mm | |
| Processing thickness | 0.3-1.5mm | |
| Roller material | 45# steel coated with hard chrome | |
| Main motor power / hydraulic station power | 7.5KW/3KW | These parameters can be set according to the required production capacity. |
| Forming passes | 16 | |
| Forming speed | 5-15 meters/minute | |
| Machine dimensions | 10×1.3×1.2m | |
| Machine weight | 9T |
Related Names
Curved Roof Panel Machine | Crimp Curved Sheet Forming Equipment | Arc Roofing Sheet Making Machine
