Spiral Steel Metal Grain Bin Roll Forming Making For Building Material Shops

Spiral Steel Metal Grain Bin Roll Forming Making For Building Material Shops
Spiral Steel Metal Grain Bin Roll Forming Making For Building Material Shops Spiral Steel Metal Grain Bin Roll Forming Making For Building Material Shops

Large Image :  Spiral Steel Metal Grain Bin Roll Forming Making For Building Material Shops

Product Details:
Place of Origin: China
Brand Name: GMC
Certification: CE and Patent Certificate
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Customized packaging
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5-500 set a year
Detailed Product Description
Name: Metal Silos For Grain Storage Applicable Industries: Building Material Shops, Farms, Construction Works
Handle Material: Wood Chips, Paper Residue, Household Garbage, Straw Dimension(L*W*H): According To Grain Silo Model
Weight: As Per Size Of Grain Silo Forming Rows: 16 Rows
High Light:

large grain silo

,

grain storage silo





Spiral steel silo roll forming making machine for Building Material Shops


Product Description
Products Parameter
Stand
20mm
Guided feeder
Side slide
Transmission form
Wall plate chain drive
Shaft diameter
¢ 90㎜
Chain
1.5 inch
Forming machine motor power
11KW * 2
Forming machine speed
6-8m / min
Forming rows
16 rows
Number of curved rows
3 rows
Roll material
40Cr
Coil thickness
0.8-1.2mm
Material development width
1250mm
Forming width
1120mm



Structures

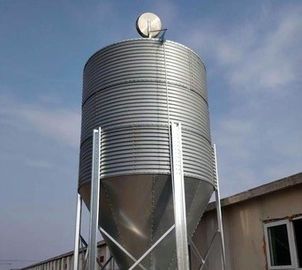

1. The body of steel storage silo

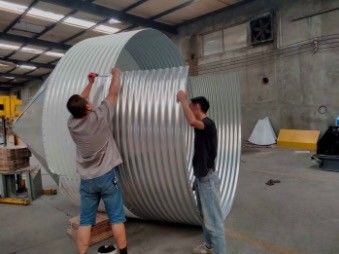

The silo body is made of high quality hot-dip galvanized steel sheet corrugated by special equipment, equipped with standard hole, connected by normal and high strength bolt. Include the wall plate, column, manhole, roof ladders and so on.

(2) Column of steel storage silos

The column, made by the Z-bar, is used to reinforce the silo body. It is connected by junction panels.

(3) Roof Ladders of steel storage silos

Roof is made up of radiated beam, roof cover board, tension ring, ventilator scoop, roof cap, etc. The space age construction technology, which is adopted in the design of the silo framework, can ensure the stability of silo under the large span. There is a guardrail around the silo eaves and there is also a manhole on top of the roof.

2. Manhole and Roof Ladders

There are inspection door and ladders inside and outside the silo body. It is convenient and accessible for any maintenance work.







Q: How to maintain the machine?
A: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
Q:How many workers to operate the machine?
A:Only 1-2 workers.
Q: How to visit your company?
A:a.Fly to Beijing airport: By high speed train From Beijing Nan Station to Cangzhou West Station(1 hour), then we can pick you up.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou West station(4.5 hours), then we can pick you up.
Q: What can you do if the machine broken?
A:Our machine's warranty period is 12months,if the broken parts can't be repaired,we can send the new parts to replace the broken parts for free,but you need pay the express cost yourself.if over warranty period,we can for to solve the problems via negotiation,and we supply the technical support for the whole life of the equipment.
Q:How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) Please visit company and test machine if convenient.
