| Name: | Roof Panel Roll Forming Machine | Thickness: | 0.4-0.8mm |
|---|---|---|---|
| Roll Material: | 45# High Grade Steel | Lanugage System:: | Chinese, English |
| Drive Mode: | Chain | Feature: | High Speed,low Energy Consumption |
| High Light: | cz purlin roll forming machine,double layer roll forming machine |
||

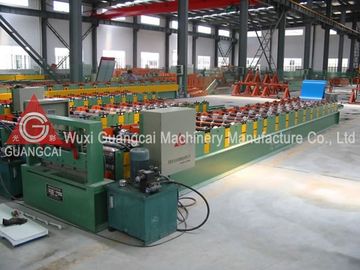

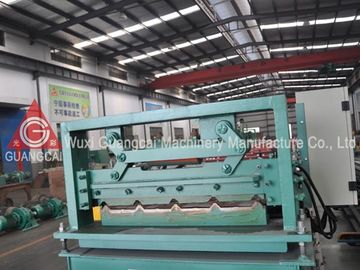

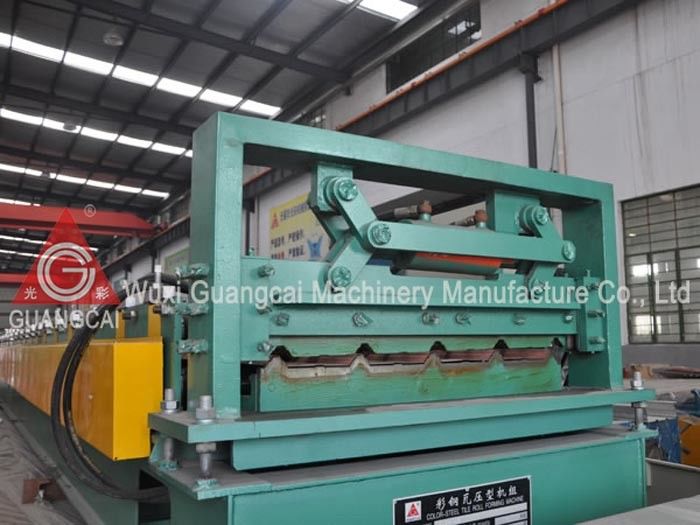

WC25-205-820 Roof Panel Thickness 0.4-0.8mm Roll Forming Machine
Down Pipe Roll Forming Machine
Advantages
1. After running numerous tests and making many modifications, our down pipe roll forming machine overcomes some annoying problems, such as unsmooth pipe shape, insecure locking between pipes, etc.
2. The pneumatic cutting method minimizes the deformation generated during cutting process. Due to the application of this method, our machine is endowed with high cutting efficiency, simple structure, light weight and low price.
3. The down pipes have a round or square cross-section, and they are connected together by the locking mechanism. They can work together with rain gutters to build up the roof drainage system.
4. The cutting system for the square down pipe has gained the national patent (ZL201120054583.8), and our down pipe roll forming machine could be manufactured with different sizes and specifications.
Processing Flow
Passive decoiling → guided material feeding → roll forming → cut-to-length → offloading
Composition
1. 5T passive decoiler
2. Shape forming machine
3. Hydraulic shear
4. Hydraulic station
5. PLC control cabinet
6. Run out table
Specifications
| Model | Note | ||
| Applicable material | Color plate, galvalume plate, aluminum plate and cooper plate | This machine is customizable upon each customer's requirements and the characteristics of processed material. | |
| Feeding width | 260mm | 398mm | |
| Processing thickness | 0.3-0.8mm | ||
| Roller material | 45#steel coated with hard chrome | ||
| Main motor power / hydraulic station power | 7.5kW / 3kW | 5.5kW / 3kW | These parameters can be set according to the required production capacity. |
| Forming passes | 24 | ||
| Forming speed | 5-15 meters/minute | ||
| Machine dimensions | 11×1.0×1.0m | ||
| Machine weight | 7T | ||
Related Names
Water Drainage Pipe Forming Equipment | Steel Downspout Machine | Roof Drain Pipe Production Machine
