| Name: | Metal Grain Bin | Handle Material: | Wood Chips, Paper Residue, Household Garbage, Straw |
|---|---|---|---|
| Auxiliary System: | Cleaning,drying,de-dusting,conveying,etc. | Usage: | For Grain Or Bulk Material Storage |
| Applicable Industries: | Farms, Construction Works , Energy & Mining | Weight: | As Per Size Of Grain Silo |
| High Light: | silo grain bin,grain storage silo |
||
Large Capacity Grain Storage Silo Bin Manufacturer_Industrial Used Galvanized Steel Spiral Silo for Sale
Our bolted steel silo is used to store grain, seed, feed, cement, coal and other granular or powdered materials. Popular uses for our product include, Temporary Transit, Raw Material, and Grain warehouses. Current applications of the Bolted Steel Silo is to provide efficient and affordable storage solutions for grain warehousing, alcohol plant, flourmill, oil mill, starch factory, feed mill, malt factory, distilleries, seaport, farm, and grain-processing centers, etc.
Steel Silo Feature
1. It can break the arch reliably for various materials that are difficult to flow freely and easy to bridge.
2. Continuous feeding quantity can be adjusted.
3. The spiral blade chooses different types of wear-resistant materials according to different materials to adapt to various application environments.
4. Automatic operation and convenient maintenance.
5. Heavy structure, long life.
|
Bottom shape |

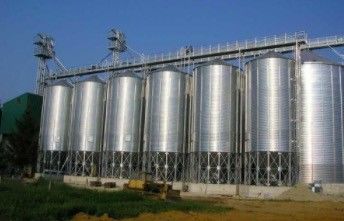

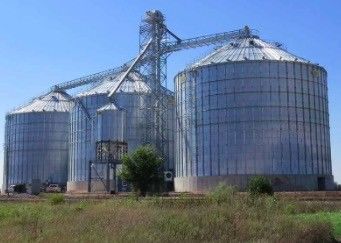

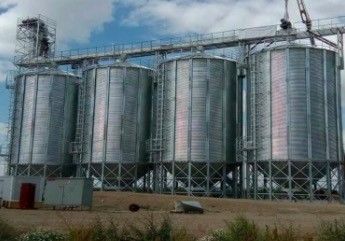

Hopper Type | Flat Bottom Type |
| Capacity | ≤1500t | ≥1500t |
| Design view |
Heavy structural “wide-flanged” columns Columns designed “X” bracing Pressure bearing is higher than the national standard, and safe enough. |
Can be built by hopper concrete or flat cement based on your requirement and actual demand. |
| Silo Discharge |
Hopper is with Rigorous Full Load Safety Calculation. BODA has 0 Silo Hopper Accidents and 0 Silo Accidents Can be made by concrete or steel |
There will be one or more discharge holes on the bottom based on different materials and capacity. |
| Sweeper | Normally no need sweeper for hopper bottom silo except for high viscidity materials |
Clean up residual easier China Famous Brand or France Brand
|
| Hopper Bottom Steel Silo Technical Specifications | ||||||||
| Capacity | 50 ton | 100 ton | 150 ton | 200 ton | 300 ton | 500 ton | 1000 ton | 1500 ton |
| Diameter(m) | 3.667 | 4.584 | 5.5 | 5.5 | 6.417 | 7.334 | 10.084 | 12.834 |
| Total Height(m) | 9.56 | 11.41 | 12.13 | 15.49 | 17.33 | 21.42 | 23.61 | 23.51 |
|
Volume(m3) Density:0.75ton/m3 |
69 | 131 | 195 | 275 | 418 | 699 | 1379 | 2039 |
| Flat Bottom Steel Silo Technical Specifications | ||||||||
| Capacity | 1000 ton | 1500 ton | 2000 ton | 2500 ton | 3000 ton | 5000 ton | 8000 ton | 10000 ton |
| Diameter(m) | 10.084 | 11.918 | 13.75 | 14.668 | 15.584 | 18.334 | 22.918 | 26.585 |
| Total Height(m) | 18.69 | 20.34 | 20.87 | 22.25 | 24.78 | 28.6 | 29.85 | 30.85 |
|
Volume (m3) Density:0.75ton/m3 |
1335 | 2009 | 2701 | 3278 | 4145 | 6693 | 10640 | 14513 |
