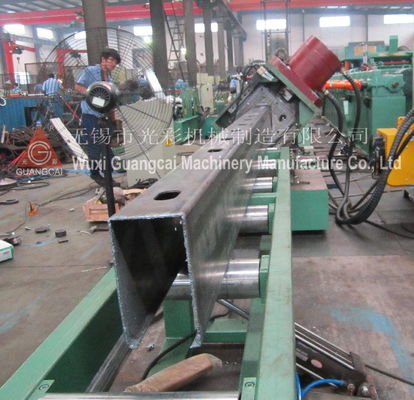

GWC Large Size C Purlin Roll Forming Machine
1. By adjusting the spacer, the purlin roll forming machine is able to produce six kinds of products with different specifications.
2. It adopts stepless variable speed drive, including manual type and automatic type, to fabricate different purlin panels, ensuring high precision and stable performance.
3. According to the customer's requirements, there are three options for the production process which are pre-punching and pre-cutting type (punching – cutting- pressing), pre-punching and post-cutting type (punching – pressing - cutting), as well as post-punching and post cutting type (pressing – punching - cutting).
4. Our purlin roll forming machine can be designed according to the drawings and requirements provided by our client.

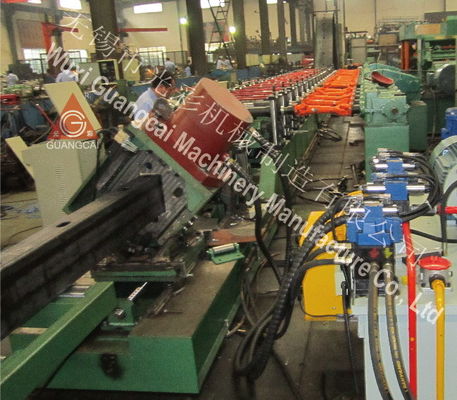

Passive decoiling → guided material feeding → roll forming → punching → cut-to-length → offloading
1. 3T passive decoiler
2. Shape forming machine
3. Hydraulic shear
4. Hydraulic station
5. Punching machine
6. PLC control cabinet
7. Run out table
1. The GWC large size C purlin roll forming machine uses the spacer to adjust the final product's specification, and six kinds of C sections are available.
2. Our product has a bracket-type frame, and a gearbox is also applied.
3. The finished C sections are commonly used to make purlin and wall beam of steel buildings. They are also suitable to fabricate column, beam and arm for the light industrial machinery. In addition, this machine could be tailor to best meet every customer's requirements.
|Product||GWC large size C purlin roll forming machine||Note|
|Applicable material||Galvanized sheet and carbon steel||This machine is customizable upon each customer's requirements and the characteristics of processed material.|
|Roller material||Heat treated bearing steel|
|Main motor power / hydraulic station power||90kW / 55kW||These parameters can be set according to the required production capacity.|
|Forming speed||5-15 meters/minute|
