Payment & Shipping Terms:
|Raw Material:||Galvanized Steel Sheet||Type:||Tile Forming Machine|
|Applicable Industries:||Building Material Shops, Manufacturing Plant, Construction Works||After Warranty Service:||Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service|
|Condition:||New||Tile Type:||Colored Steel|
roof tile roll forming machine,
shutter door roll forming machine
Glazed steel tile roll forming machine GWC20-214-856/1070
This glazed steel tile roll forming machine consists of several parts, as listed below.
1. 5T passive decoiler
2. Shape forming machine
3. Pressing dies
4. Hydraulic shear
5. Hydraulic station
6. PLC control cabinet
7. Run out table
Passive decoiling → guided material feeding → roll forming → press forming → cut-to-length → run out

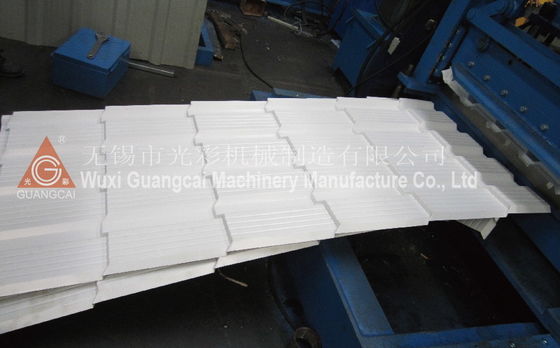

The glazed roof tile has elegant and beautiful appearance, and it is commonly used for buildings in tourist attractions, garden-style factories and more.

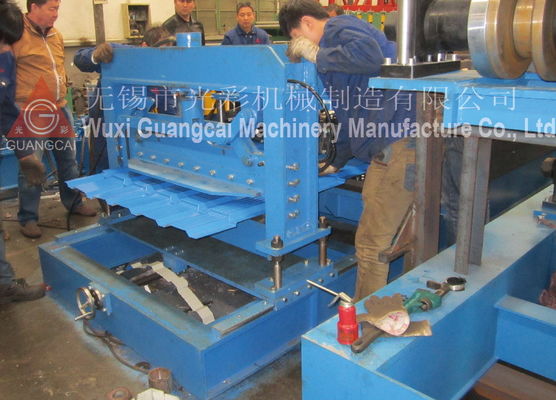

Our glazed roof tile roll forming machine comprises of three parts which are roller table, profiling table and cutter table. The rollers rotate with the cycle chain that is driven by the motor to execute roll forming treatment to the color plate, then the profiling process is done as a result of the vertical movement of the dies driven by the hydraulic cylinder to press the color plate into multiple sections with equal distance, creating an appearance that is similar to glazed tile. Finally, the cutting process is applied to carry out cut-to-length operation to the color plate through the vertical movement of cutters, and the cutters are driven by hydraulic cylinder.
1. period building
3. park buiding
4. civilian buiding
|Applicable material||Color plate, pre painted sheet, galvalume plate and aluminum sheet||This machine is customizable upon each customer's requirements and the characteristics of processed material.|
|Roller material||45# steel coated with hard chrome|
|Main motor power / hydraulic station power||5.5kW / 7.5kW||These parameters can be set according to the required production capacity.|
Aluminum tile roll forming machine / Metal roof tile forming machine
Contact Person: Guangcai
Operation Panel: Delta Touch Screen
Noice: Environment Friendly, Low Noice.
Production Capacity: 8-12m/Min
