Corrugated Iron Roofing Sheet Making Machine With PLC Control Cabinet

Corrugated Iron Roofing Sheet Making Machine With PLC Control Cabinet
Corrugated Iron Roofing Sheet Making Machine With PLC Control Cabinet Corrugated Iron Roofing Sheet Making Machine With PLC Control Cabinet Corrugated Iron Roofing Sheet Making Machine With PLC Control Cabinet

Large Image :  Corrugated Iron Roofing Sheet Making Machine With PLC Control Cabinet

Product Details:
Place of Origin: China
Brand Name: GMC
Certification: CE and Patent Certificate
Model Number: GWC38-265-1060
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Customized packaging
Delivery Time: 70 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5-500 set a year
Detailed Product Description
Use: Roof Voltage: 380V, 50HZ, 3 Phase
Key Selling Points: Easy To Operate Suitable Material: PPGI, PI, CR, Q235 Or Equivalent
Color: Blue Or At Buyer'S Requirement Control System: PLC And Touch Screen
High Light:

roof tile roll forming machine

,

u channel roll forming machine

Glazed steel roof tile roll forming machine

GWC 38-265-1060









Working process:

Passive decoiling → guided material feeding → roll forming → press forming → cut-to-length → run out



The glazed roof tile has elegant and beautiful appearance, and it is commonly used for buildings in tourist attractions, garden-style factories and more.

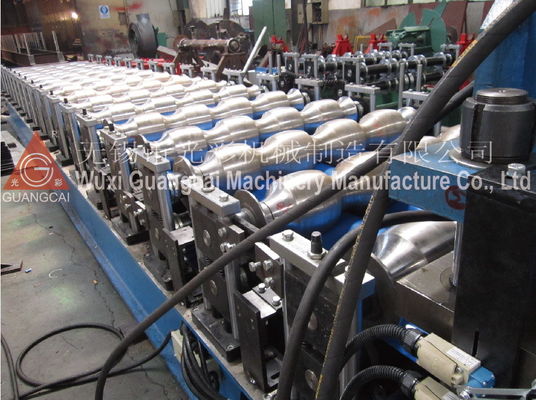

Our glazed roof tile roll forming machine comprises of three parts which are roller table, profiling table and cutter table. The rollers rotate with the cycle chain that is driven by the motor to execute roll forming treatment to the color plate, then the profiling process is done as a result of the vertical movement of the dies driven by the hydraulic cylinder to press the color plate into multiple sections with equal distance, creating an appearance that is similar to glazed tile. Finally, the cutting process is applied to carry out cut-to-length operation to the color plate through the vertical movement of cutters, and the cutters are driven by hydraulic cylinder.

1. period building

2. villa

3. park buiding

4. civilian buiding





Corrugated Iron Roofing Sheet Making Machine With PLC Control Cabinet 0





Model GWC38-265-1060 Note
Applicable material Color plate, pre painted sheet, galvalume plate and aluminum sheet This machine is customizable upon each customer's requirements and the characteristics of processed material.
Feeding width 1250mm
Processing thickness 0.5-0.6mm
Roller material 45# steel coated with hard chrome
Main motor power / hydraulic station power 5.5kW / 7.5kW These parameters can be set according to the required production capacity.
Forming passes 17
Forming speed 2-3m/minute
Machine dimensions 7.5×1.5×1.2m
Machine weight 7T




Related names:

Aluminum tile roll forming machine / Metal roof tile forming machine
