Product Details:
Payment & Shipping Terms:
|
| Use: | Wall,workshop,Roof And Wall | Certification: | CE,ISO,CE/ISO9001 |
|---|---|---|---|
| Condition: | New | Dimension(l*w*h): | 15m*1.5m*0.8m,6500*1400*1300 Mm |
| After-sales Service Provided: | Video Technical Support | Name: | Pu Sandwich Panel Equipment,Double Liner Aluminium Roof Tile Cold Roll Forming Equipment |
| High Light: | metal deck roll forming machine,metal roof roll forming machine |
||

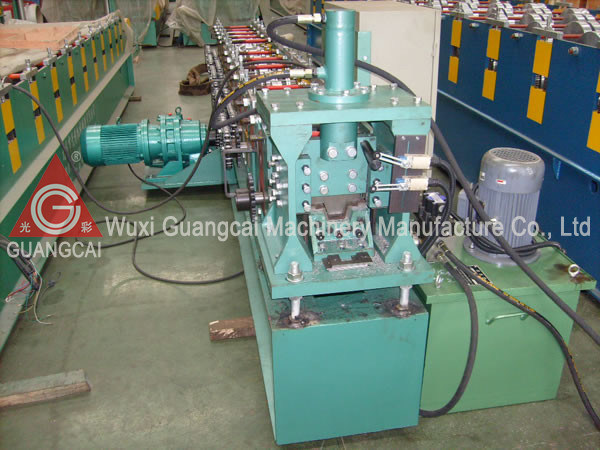

Light Steel Keel Roll Forming Line
The GWC40-40 light steel keel roll forming line is a piece of specialized equipment to make light steel keel. As a new-style building material, the light steel keel has found a lot of applications in recent years. For example, it could be applied in the renovation and interior decoration projects for hotels, theaters, factories, office buildings, shopping malls, airport terminals, railway stations and other old buildings. In addition, this product could be specially designed according to the drawings provided by the client.
Processing Flow
Passive decoiling → guided material feeding → roll forming → cut-to-length → offloading
Composition
1. 3T passive decoiler
2. Shape forming machine
3. Hydraulic shear
4. Hydraulic station
5. PLC control cabinet
6. Run out table
Specifications
| Model | Note | |
| Applicable material | Galvanized plate and high-strength color plate | This machine is customizable upon each customer's requirements and the characteristics of processed material. |
| Feeding width | 390mm | |
| Processing thickness | 0.5-0.7mm | |
| Roller material | 45# steel which is heat treated and coated with hard chrome | |
| Main motor power / hydraulic station power | 3kW / 3kW | These parameters can be set according to the required production capacity. |
| Rolling passes | 15 | |
| Rolling speed | 5-15 meters/minute | |
| Machine dimensions | 5×1.3×1.2m | |
| Machine weight | 4T |
Related Names
Light Gauge Structural Framing Machine | Steel Joist Forming Machine | Building Steel Frame Making Machine
