Payment & Shipping Terms:
|After-sales Service Provided:||Overseas Service Center Available||Condition:||New|
|Warranty:||1 Year||Name:||Building Material DX Glazed Roofing Tile Roll Forming Making Machinery,Solar Panel Manufacturing Machines,cold Roll Forming Machine|
|Thickness:||0.3-1.2MM||Material Thickness:||0.4-0.6mm(as Required)|
cz purlin roll forming machine,
double layer roll forming machine
GWC25-205-1025 Roof Panel Embossing and Roll Forming Machin
The GWC25-205-1025 roof panel embossing and roll forming machine enjoys unique characteristics as follows besides the common features it shares with machines of the same series.
1. This machine can reduce one pitch and becomes GWC25-205-820, and the feeding width is adjusted to 1000mm accordingly. So, this is a dual-use product.
2. Our product is able to make use of the embossing machine to form lozenge pattern which is also called diamond pattern. Based on customer's requirement, other patterns are also available.
3. If needed, this roof panel embossing and roll forming machine could work without the embossing machine in order to fabricate common roof panel without any patterns, though the embossing machine is applicable for any panel.

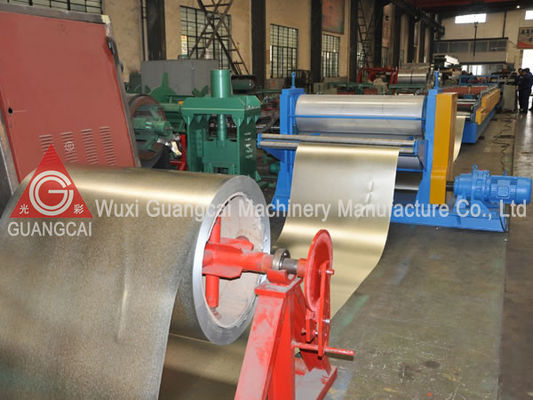

Passive decoiling → embossing → guided material feeding → roll forming → cut-to-length→ offloading
1. 5T passive decoiler

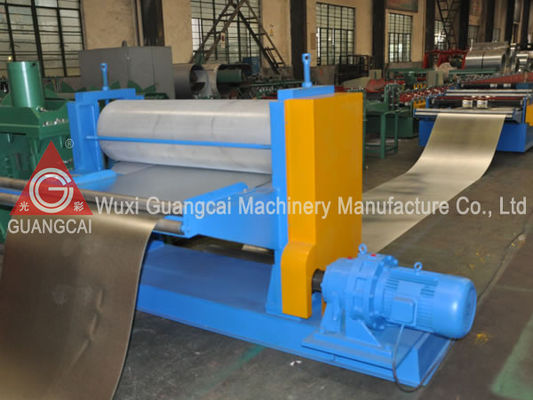

2. Embossing machine
3. Shape forming machine
4. Hydraulic shear
5. Hydraulic station
6. PLC control cabinet
7. Run out table
|Applicable material||Color plate, galvanized sheet, galvalume sheet and aluminum plate.||This machine is customizable upon each customer's requirements and the characteristics of processed material. The patterns could be changed as requested by customer.|
|Roller material||45# steel coated with hard chrome|
|Main motor power / hydraulic station power||3kW / 3kW||These parameters can be set according to the required production capacity.|
|Forming speed||5-15 meters/minute|
